Description
Self return from 25° (either direction)
Door load up to 45 KG
| Fit for door thickness | 8, 10mm | ||
| Material | Brass, Stainless Steel | ||
| Finish | Bright Chrome Plated (CP) Polished Stainless Steel (PPS) Satin Stainless Steel (SSS) |
||

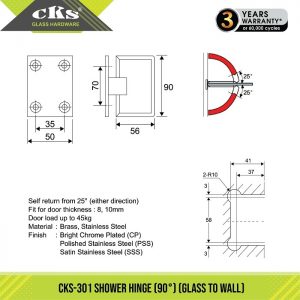

Glass preparation detail
(The glass angle of fixed panel need to cut 45° when used in CKS 302 135° hinge)
Maximum Frameless Glass Door Dimension For CKS Shower Hinge (CKS-301)
| For 10mm Glass Thickness With 2pcs hinges (A) |
For 10mm Glass Thickness With 3pcs hinges (B) |
|
| Max width (W) mm | 750 | 900 |
| Max height (H) mm | 2400 | 3000 |
| Max Weight (KG) | 45 | 67.5 |
